A breather valve is a device used to control the flow of gas within a tank, container, or system. Its primary function is to prevent overpressure and vacuum, reduce volatilization, and maintain pressu...
READ MOREThe product is used to automatically open the exhaust when the equipment box reaches the negative pressure strength. Used in Roots blower, agriculture...
Material: Aluminum Alloy 6061, surface polished. Burr removal. Observe the mirror material: glass. (Optional tempered glass, high borosilicate glass) ...
Material: Aluminum Alloy 6061, surface polished. Burr removal. Observe the mirror material: glass. (Optional tempered glass, high borosilicate glass) ...
The main material is aluminum 6061- surface polishing treatment, and burr removal. Hexagonal perforated direct exhaust Sealing ring type at the thread...
Hat material: iron (customizable stainless steel) electroplated chromium treatment. Connecting body material: Aluminum alloy 6061- surface polishing, ...
Material: Nylon Sealing ring type at the thread: butyl rubber NBR60° (mainly black) customized optional fluorine rubber, silicone, PC, EPDM). Purpose:...
Material: plastic. Function: It is used to balance the atmospheric pressure inside and outside the reducer to ensure the normal discharge of gas in th...
Hat material: iron (customizable stainless steel) electroplated chromium treatment The connection part is Aluminum alloy 6061- surface polishing treat...
Material: Aluminum Alloy 6061, surface polished. Burr removal. Observe the mirror material: glass. (Optional tempered glass, high borosilicate glass) ...
Material: Aluminum Alloy 6061, surface polished. Burr removal. Observe the mirror material: Polyurethane (PC-plastic). (Optional tempered glass, high ...
Material: Aluminum Alloy 6061, surface polished. Burr removal. Observe the mirror material: Polyurethane (PC-plastic). (Optional tempered glass, high ...

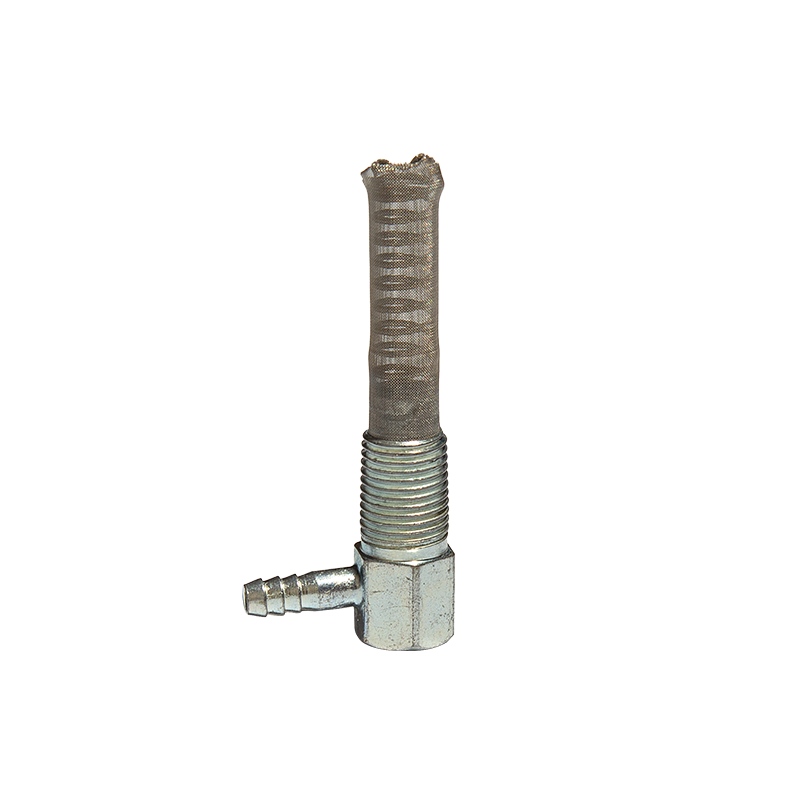

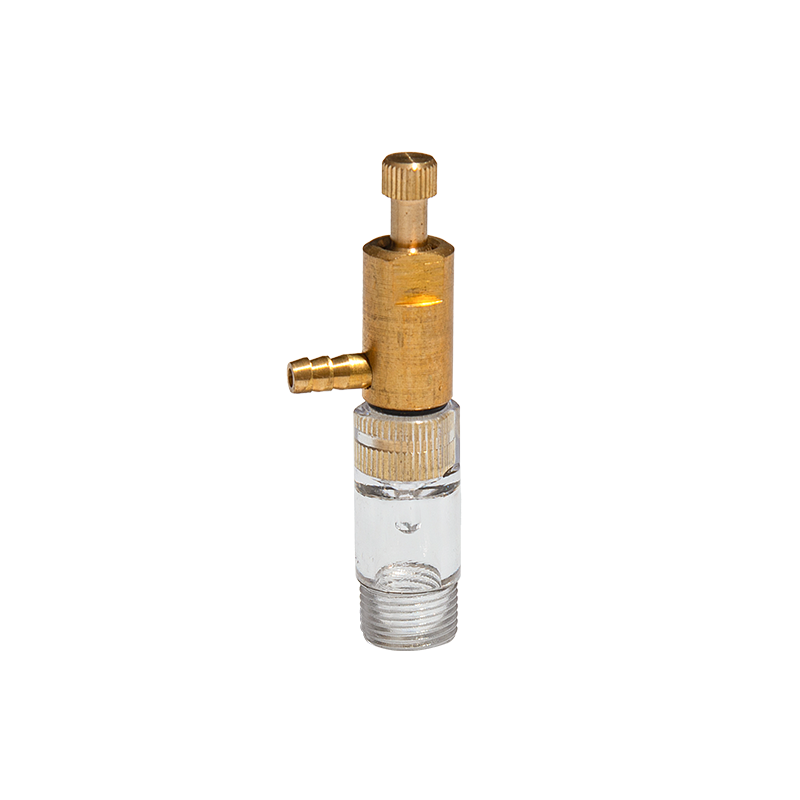

Copper drip nozzle. - Iron drip nozzle | ||
Ltem NO. | Size | A(mm) |
ZYZZ-DYZ38 | 3/8’ | G3/8 |
ZYZZ-DYZ14 | 1/4’ | G1/4 |

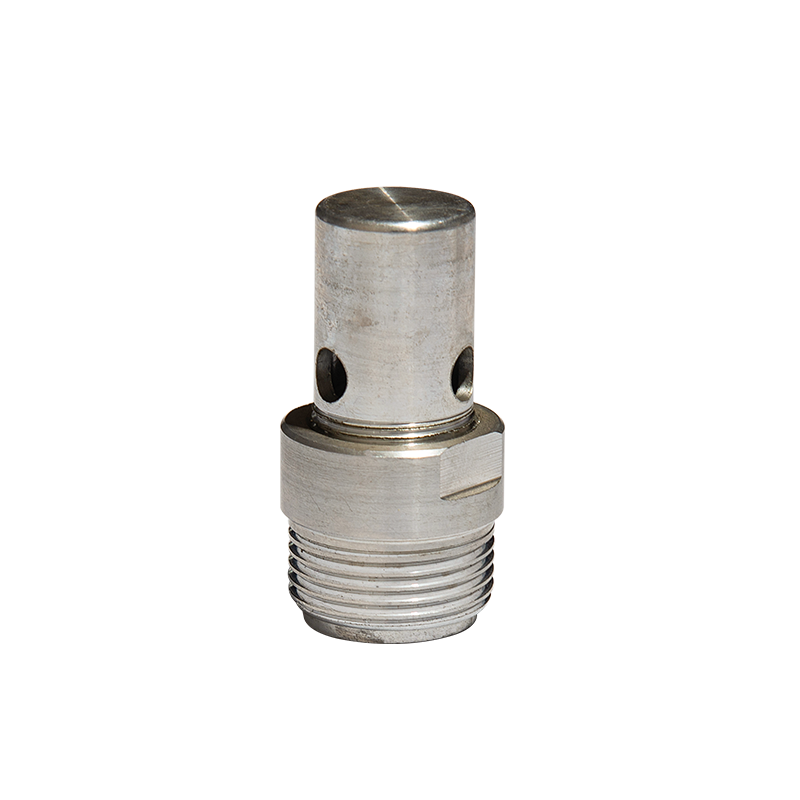

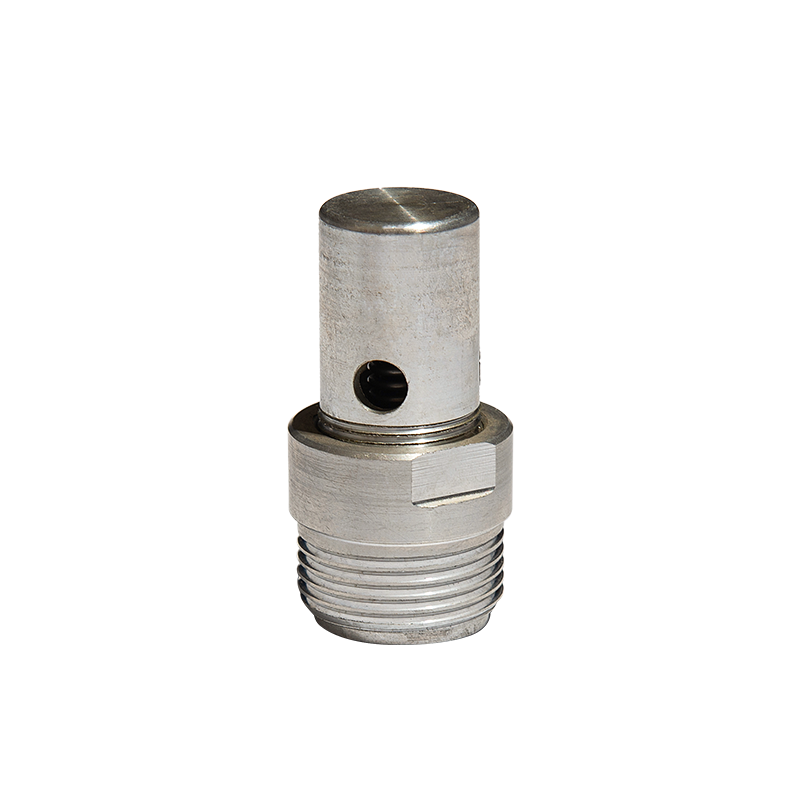

The product is used to automatically open the exhaust when the equipment box reaches the negative pressure strength.
Used in Roots blower, agriculture, aquaculture industry, widely used.
Aluminum alloy negative pressure valve | ||
Ltem NO. | Size | A(mm) |
ZYZZ-FYF1 | 1’ | G1 |
ZYZZ-FYF112 | 1-1/2’ | G1-1/2 |
ZYZZ-FYF2 | 2’ | G2 |
ZYZZ-FYF3 | 3’ | G3 |
ZYZZ-FYF4 | 4’ | G4 |

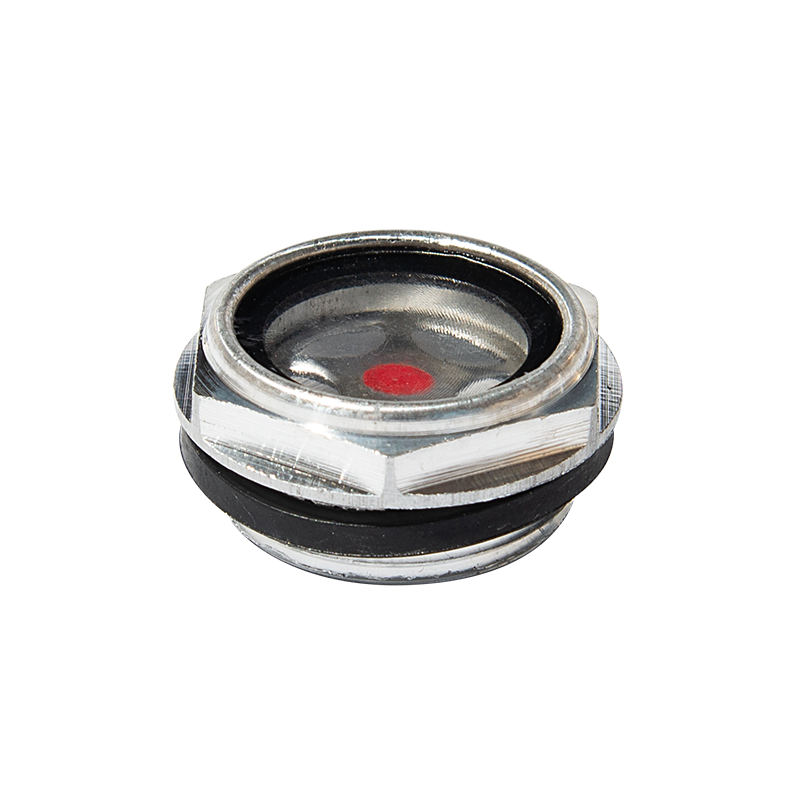

Material: Aluminum Alloy 6061, surface polished. Burr removal.
Observe the mirror material: glass. (Optional tempered glass, high borosilicate glass)
Seal ring type: nbr60 °, with black
Sealing ring at thread: NBR。 (Customized optional fluorine glue, silicone, PC, EPDM)
Recommended operating temperature: -
Recommended working pressure: lower

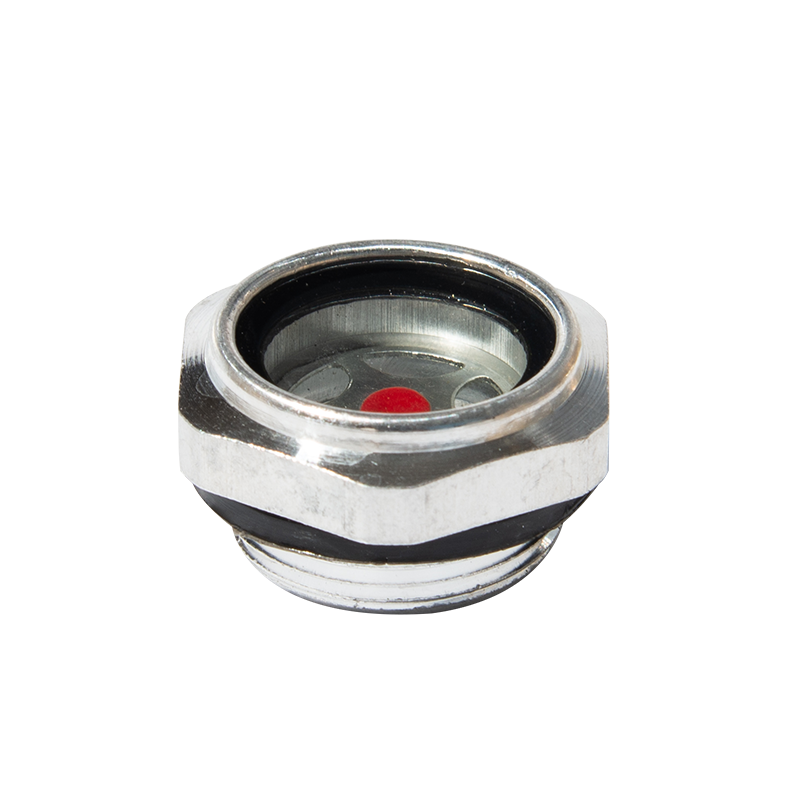

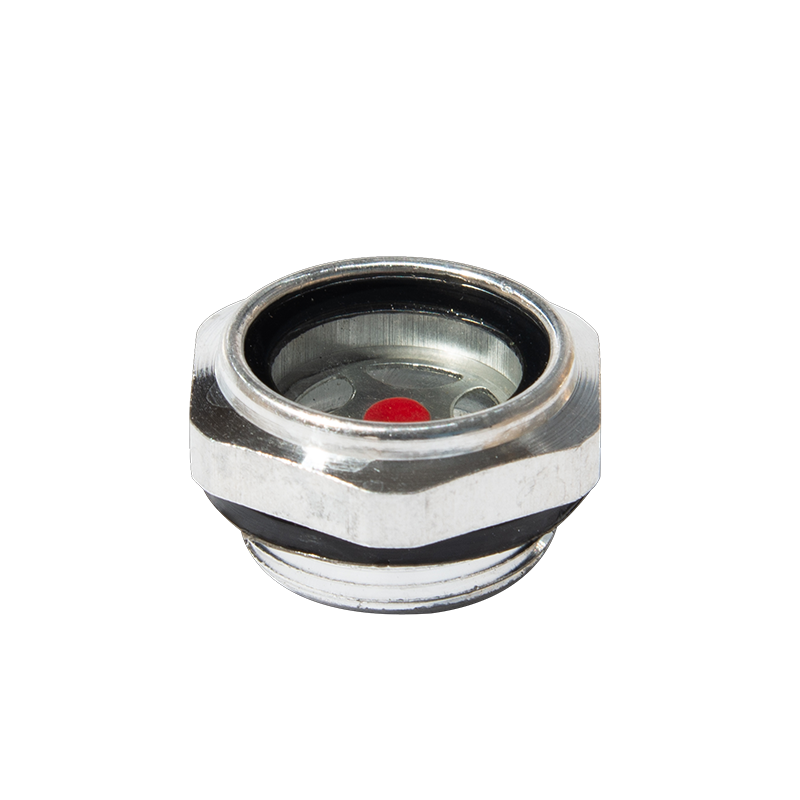

Aluminium oil sight glass universal(metric thread) | |||||||
Sealing method (flat gasket seal) hexagonal | |||||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | D(mm) | Glass (mm) |
ZYZZ-PGM10 | M10 | M10*1 | 14 | 7 | 4 | 17 | 3 |
ZYZZ-PGM12 | M12 | M12*1.5 | 14 | 7 | 4 | 17 | 3 |
ZYZZ-PGM14 | M14 | M14*1.5 | 15 | 7 | 5 | 21 | 2.5 |
ZYZZ-PGM16 | M16 | M16*1.5 | 15 | 7 | 5 | 21 | 3 |
ZYZZ-PGM18 | M18 | M18*1.5 | 17 | 9 | 5 | 21 | 3 |
ZYZZ-PGM20 | M20 | M20*1.5 | 17 | 9 | 5 | 24 | 3 |
ZYZZ-PGM22 | M22 | M22*1.5 | 17 | 9 | 5 | 26 | 3 |
ZYZZ-PGM24 | M24 | M24*1.5 | 18.5 | 10 | 6 | 32 | 4 |
ZYZZ-PGM26 | M26 | M26*1.5 | 18.5 | 10 | 6 | 32 | 4 |
ZYZZ-PGM27 | M27 | M27*1.5 | 18.5 | 10 | 6 | 32 | 4 |
ZYZZ-PGM-30 | M30 | M30*1.5 | 18.5 | 10 | 6 | 36 | 4 |
ZYZZ-PGM33 | M33 | M33*1.5 | 22 | 12 | 7 | 40 | 4 |
ZYZZ-PGM36 | M36 | M36*1.5 | 22 | 12 | 7 | 42 | 4 |
ZYZZ-PGM42 | M42 | M42*1.5 | 22.5 | 12 | 7.5 | 50 | 4 |
ZYZZ-PGM48 | M48 | M48*1.5 | 23.5 | 13 | 7.5 | 55 | 5 |

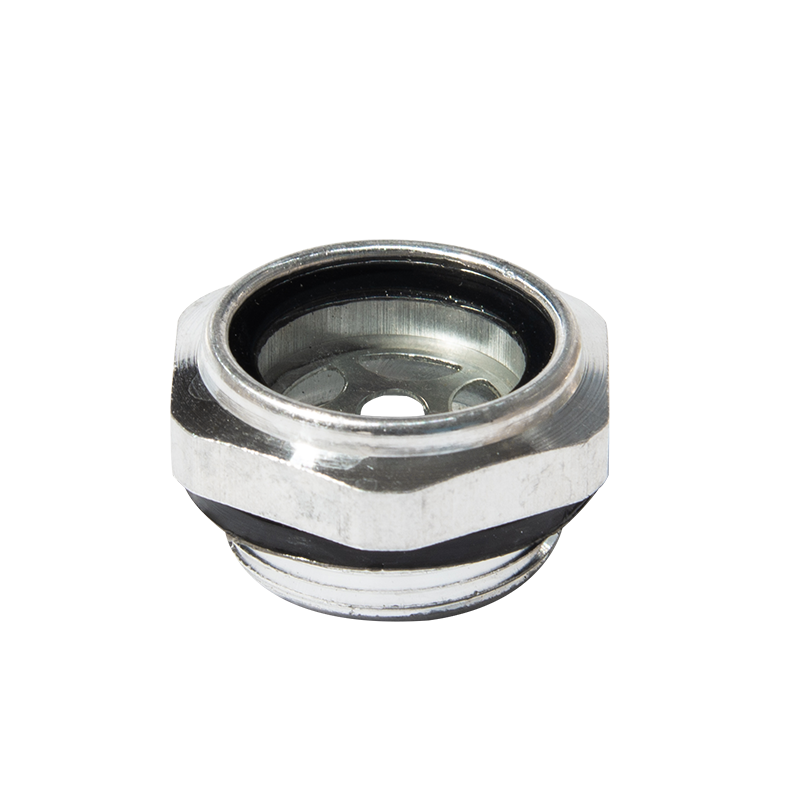

Aluminium oil sight glass non-standard(metric thread) | |||||||
Sealing method (flat gasket seal) hexagonal | |||||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | D(mm) |
Glass (mm) |
ZYZZ-PGF-12 | M12 | M12*1.25 | 14 | 7 | 4 | 17 | 3 |
ZYZZ-PGF-26 | M26 | M26*2 | 18.5 | 10 | 6 | 32 | 4 |
ZYZZ-PGF-27 | M27 | M27*2 | 18.5 | 10 | 6 | 32 | 4 |
ZYZZ-PGF-30 | M30 | M30*2 | 18.5 | 10 | 6 | 36 | 4 |
ZYZZ-PGF-33 | M33 | M33*2 | 23.5 | 12 | 7 | 40 | 4 |
ZYZZ-PGF-36 | M36 | M36*2 | 22 | 12 | 7 | 42 | 4 |
ZYZZ-PGF-42 | M42 | M42*2 | 22.5 | 12 | 7.5 | 50 | 4 |
ZYZZ-PGF-48 | M48 | M48*2 | 23.5 | 13 | 7.5 | 55 | 5 |
Material: Aluminum Alloy 6061, surface polished. Burr removal.
Observe the mirror material: glass. (Optional tempered glass, high borosilicate glass)
Seal ring type: nbr60 °, with black
Sealing ring at thread: NBR。 (Customized optional fluorine glue, silicone, PC, EPDM)
Recommended operating temperature: -
Recommended working pressure: lower than 1.5MPa.
Sealing method (flat gasket seal) hexagonal | |||||||
Cardboard hollow bracket | |||||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | D(mm) | Glass(mm) |
ZYZZ-LKM16 | M16 | M16*1.5 | 15 | 7 | 5 | 21 | 3 |
ZYZZ-LKM20 | M20 | M20*1.5 | 17 | 9 | 5 | 24 | 3 |
ZYZZ-LKM22 | M22 | M22*1.5 | 17 | 9 | 5 | 26 | 3 |
ZYZZ-LKM27 | M27 | M27*1.5 | 18.5 | 10 | 6 | 32 | 4 |
ZYZZ-LKM33 | M33 | M33*1.5 | 22 | 12 | 7 | 40 | 4 |
ZYZZ-LKM42 | M42 | M42*1.5 | 22.5 | 12 | 7.5 | 50 | 4 |

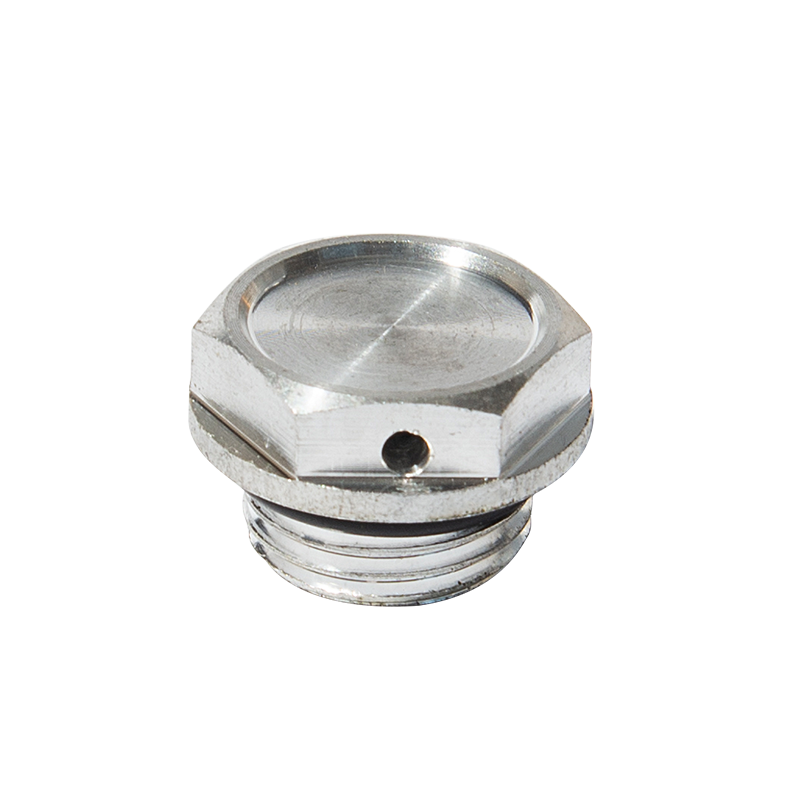

The main material is aluminum 6061- surface polishing treatment, and burr removal.
Hexagonal perforated direct exhaust
Sealing ring type at the thread: butyl rubber NBR60° (mainly black) customized optional fluorine rubber, silicone, PC, EPDM).
Used for the exhaust function of the box, the exhaust size is standard according to the size of the hole.
Aluminum alloy ventilation cap hex holes straight row | |||||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | D(mm) | ZZ(mm) |
ZYZZ-TQM10 | M10 | M10*1 | 16 | 8 | 3 | 12 | 14 |
ZYZZ-TQM16 | M16 | M16*1.5 | 14 | 7.5 | 1.5 | 19 | 22 |
ZYZZ-TQM20 | M20 | M20*1.5 | 15.5 | 8 | 1.8 | 21 | 24 |
ZYZZ-TQM22 | M22 | M22*1.5 | 16 | 8 | 2 | 22 | 26 |
ZYZZ-TQM27 | M27 | M27*1.5 | 17 | 8.5 | 2 | 27 | 32 |
ZYZZ-TQM33 | M33 | M33*1.5 | 19.5 | 9.5 | 3 | 36 | 43 |
ZYZZ-TQG12 | 1/2’ | G1/2 | 15.5 | 8 | 1.8 | 21 | 24 |
ZYZZ-TQG34 | 3/4’ | G3/4 | 17 | 8.5 | 2 | 27 | 32 |

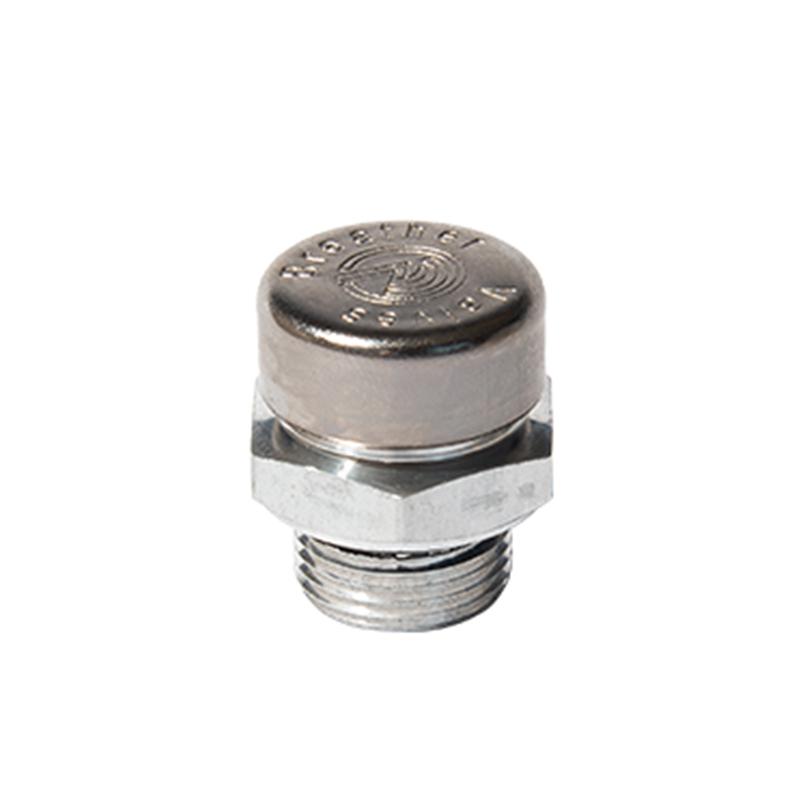

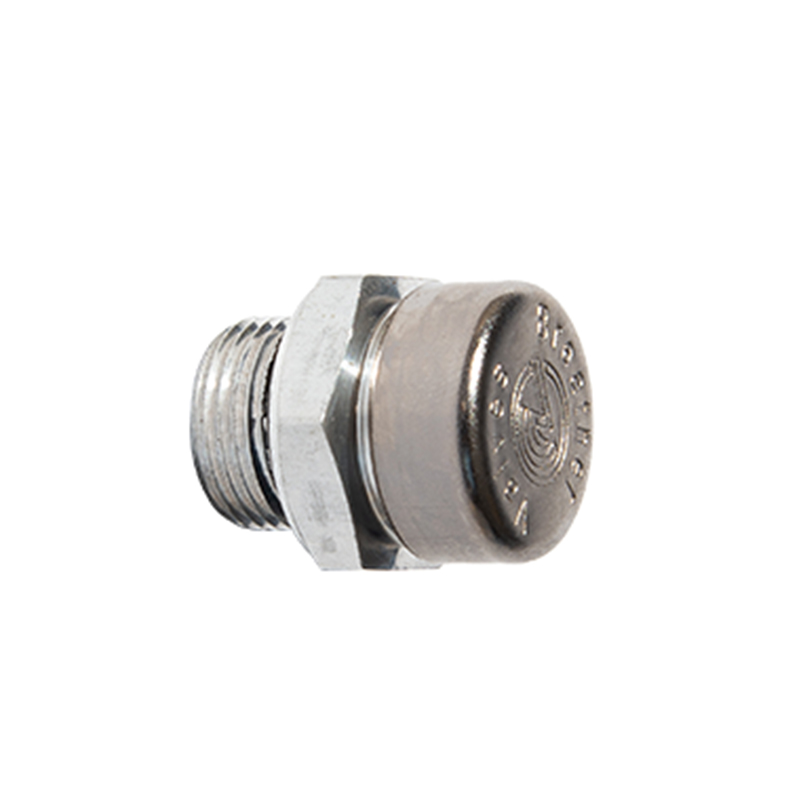

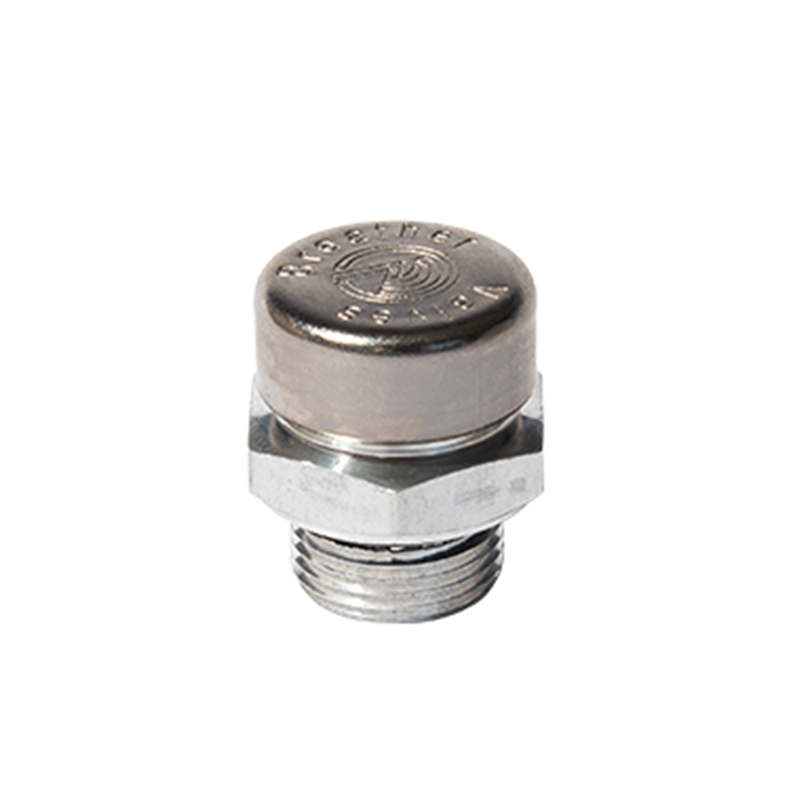

Hat material: iron (customizable stainless steel) electroplated chromium treatment.
Connecting body material: Aluminum alloy 6061- surface polishing, deburring.
Internal material: Springs and marbles are SS304.
Sealing ring type at the thread: butyl rubber NBR60° (mainly black) customized optional fluorine rubber, silicone, PC, EPDM).
Purpose: Through automatic pressure regulation pressure, make the mechanical system air circulation, and pressure stable, reduce corrosion and prolong life, and set up with the atmosphere of the pipeline, the product has exhaust, leak-proof, dust proof role, installed on the top of the gearbox, so that the pressure inside the box to maintain stability, to ensure the safety of the oil seal, prevent gear oil in transit overflow, to achieve the purpose of energy saving and environmental protection, And prevent dust into the gearbox and affect the normal work.
Critical pressure: 0.01MPa closing gas is greater than or equal to 0.05MPa opening gas.
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | D(mm) | S(mm) |
ZYZZ-LYL10 | M10 | M10*1 | 8 | 26 | 17 | 16 |
ZYZZ-LYL12 | M12 | M12*1.25 | 8 | 26 | 17 | 16 |
ZYZZ-LYL14 | M14 | M14*1.5 | 11 | 30 | 22 | 21 |
ZYZZ-LYL16 | M16 | M16*1.5 | 11 | 30 | 22 | 21 |
ZYZZ-LYL18 | M18 | M18*1.5 | 11 | 30 | 24 | 21 |
ZYZZ-LYL20 | M20 | M20*1.5 | 12 | 32 | 27 | 26 |
ZYZZ-LYL22 | M22 | M22*1.5 | 12 | 32 | 27 | 26 |
ZYZZ-LYL24 | M24 | M24*1.5 | 12 | 37 | 32 | 31 |
ZYZZ-LYL27 | M27 | M27*1.5 | 12 | 37 | 32 | 31 |
ZYZZ-LYL33 | M33 | M33*1.5 | 13 | 45 | 40 | 39 |
ZYZZ-LYL33-2 | M33-2 | M33*2 | 13 | 45 | 40 | 39 |
ZYZZ-GYL38 | 3/8” | G3/8 | 11 | 30 | 22 | 21 |
ZYZZ-GYL12 | 1/2” | G1/2 | 12 | 32 | 27 | 26 |
ZYZZ-GYL34 | 3/4” | G3/4 | 12 | 37 | 32 | 31 |
ZYZZ-GYL1 | 1” | G1 | 13 | 45 | 40 | 39 |

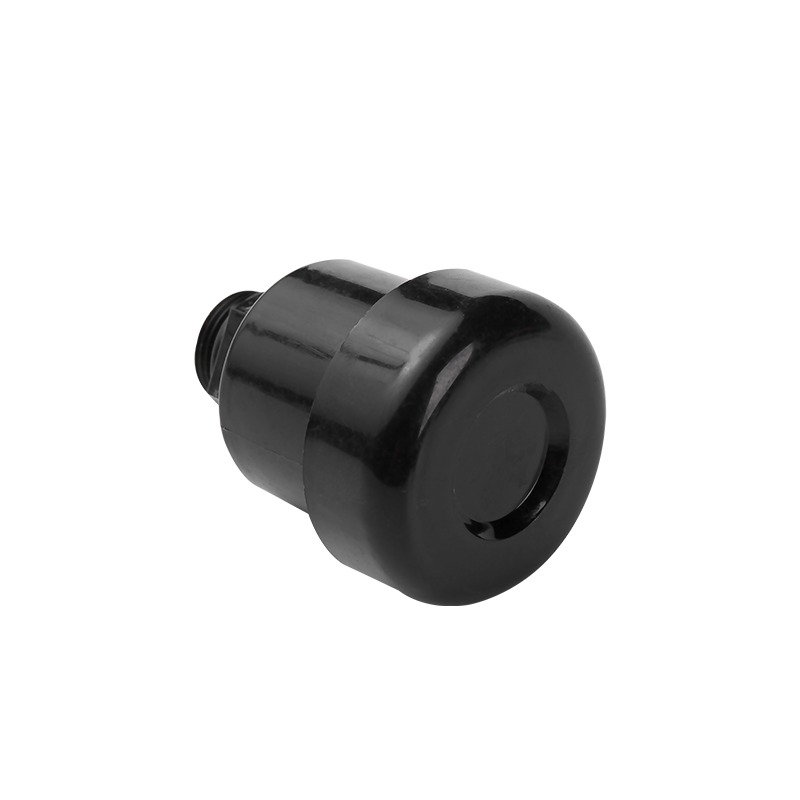

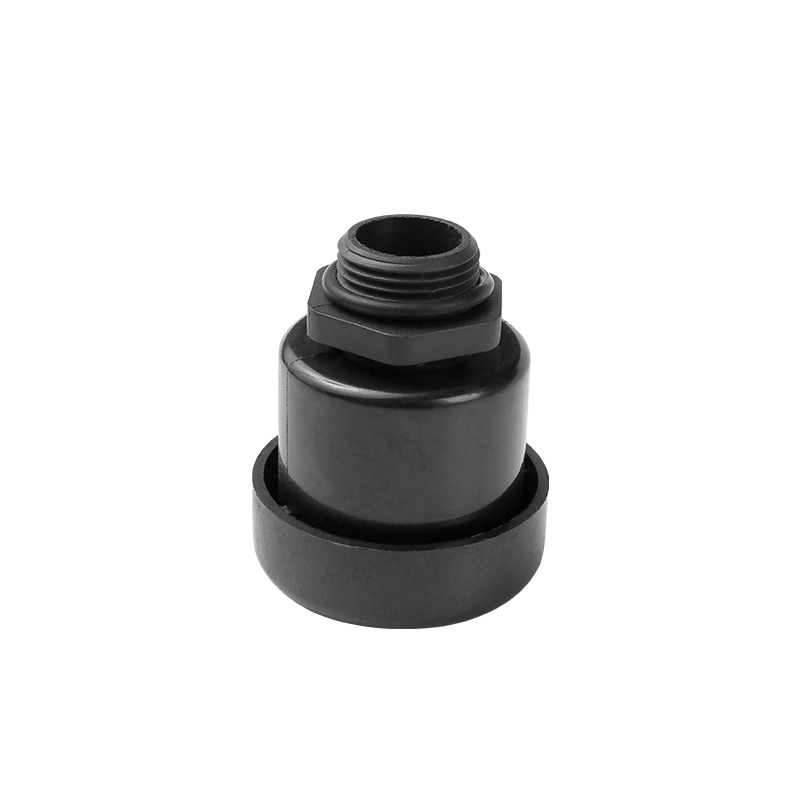

Material: Nylon
Sealing ring type at the thread: butyl rubber NBR60° (mainly black) customized optional fluorine rubber, silicone, PC, EPDM).
Purpose: The internal structure has a unique anti-blowout and dust-proof design, see the design drawings for details, such a design can make the mechanical system in the air flow, pressure stability, reduce corrosion prolong life, and set up with the atmosphere of the pipeline, installed on the top of the gearbox, so that the pressure inside the box remains stable, to ensure the safety of the oil seal, to prevent the gear oil in transit overflow, To achieve the purpose of energy saving and environmental protection, and prevent dust from entering the gearbox and affecting the normal work.
Black nylon ventilation cap | |||||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | S(mm) | S1(mm) |
ZYZZ-NL20 | M20 | M20*1.5 | 63 | 50 | 6 | 48 | 39 |
ZYZZ-NL24 | M24 | M24*2 | 63 | 50 | 6 | 48 | 39 |
ZYZZ-NL27 | M27 | M27*2 | 70 | 52 | 6 | 58 | 48 |
ZYZZ-NL33 | M33 | M33*2 | 85 | 65 | 6 | 70 | 60 |

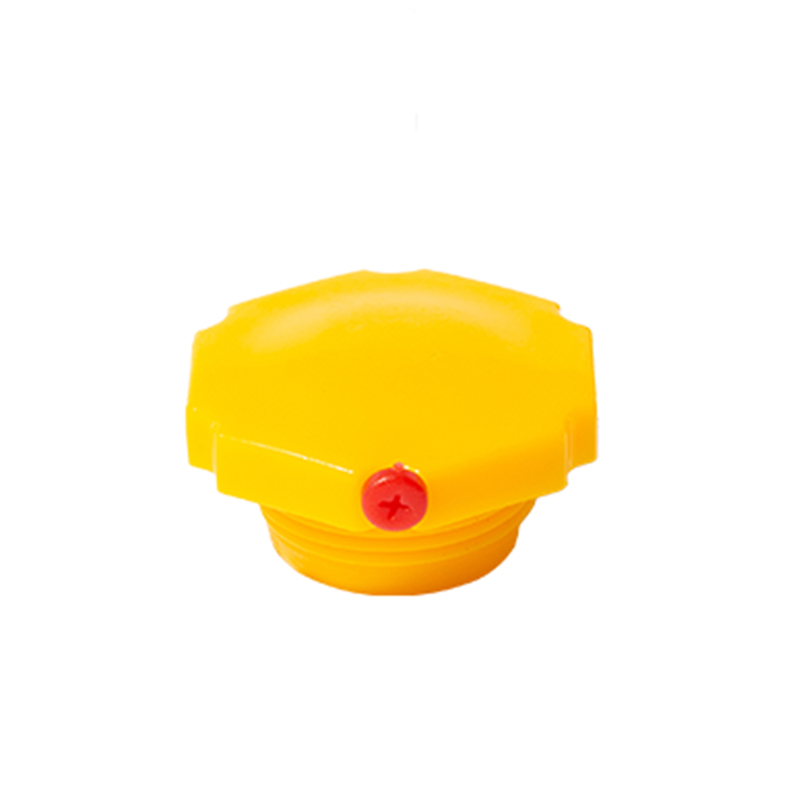

Material: plastic.
Function: It is used to balance the atmospheric pressure inside and outside the reducer to ensure the normal discharge of gas in the box when the reducer is running, and the product quality is reliable.
Plastic vent cap | ||||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | D(mm) | S(mm) |
ZYZZ-SL10 | M10 | M10*1 | 15 | 7 | 17 | 0 |
ZYZZ-SL12 | M12 | M12*1.5 | 17 | 6 | 19 | 6 |
ZYZZ-SL14 | M14 | M14*1.5 | 17 | 6 | 20 | 6 |
ZYZZ-SL16 | M16 | M16*1.5 | 16 | 6 | 23 | 6 |
ZYZZ-SL20 | M20 | M20*1.5 | 16 | 6 | 31 | 6 |
ZYZZ-SL27 | M27 | M27*1.5 | 19 | 6 | 37 | 6 |
ZYZZ-SL30 | M30 | M30*1.5 | 21 | 6 | 40 | 6 |
Hat material: iron (customizable stainless steel) electroplated chromium treatment
The connection part is Aluminum alloy 6061- surface polishing treatment, and burr removal.
Bottom filtration is: copper sintering
Sealing ring type at the thread: butyl rubber NBR60° (mainly black) customized optional fluorine rubber, silicone, PC, EPDM).
Used for the exhaust function of the box, the bottom copper sintering, prevents the oil in the box from ejecting, so that the service life is longer, dustproof, and leakproof effect.
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | D(mm) | S(mm) |
ZYZZ-TT10 | M10 | M10*1 | 8 | 26 | 17 | 16 |
ZYZZ-TT12 | M12 | M12*1.25 | 8 | 26 | 17 | 16 |
ZYZZ-TT14 | M14 | M14*1.5 | 11 | 30 | 22 | 21 |
ZYZZ-TT16 | M16 | M16*1.5 | 11 | 30 | 22 | 21 |
ZYZZ-TT18 | M18 | M18*1.5 | 11 | 30 | 24 | 21 |
ZYZZ-TT20 | M20 | M20*1.5 | 12 | 32 | 27 | 26 |
ZYZZ-TT22 | M22 | M22*1.5 | 12 | 32 | 27 | 26 |
ZYZZ-TT24 | M24 | M24*1.5 | 12 | 37 | 32 | 31 |
ZYZZ-TT27 | M27 | M27*1.5 | 12 | 37 | 32 | 31 |
ZYZZ-TT33 | M33 | M33*1.5 | 13 | 45 | 40 | 39 |
ZYZZ-TT33-2 | M33-2 | M33*2 | 13 | 45 | 40 | 39 |
ZYZZ-TT38 | 3/8” | G3/8 | 11 | 30 | 22 | 21 |
ZYZZ-TT12 | 1/2” | G1/2 | 12 | 32 | 27 | 26 |
ZYZZ-TT34 | 3/4” | G3/4 | 12 | 37 | 32 | 31 |
ZYZZ-TT1 | 1” | G1 | 13 | 45 | 40 | 39 |
Material: Aluminum Alloy 6061, surface polished. Burr removal.
Observe the mirror material: glass. (Optional tempered glass, high borosilicate glass)
Seal ring type: nbr60 °, with black
Recommended operating temperature: -
Recommended working pressure: lower

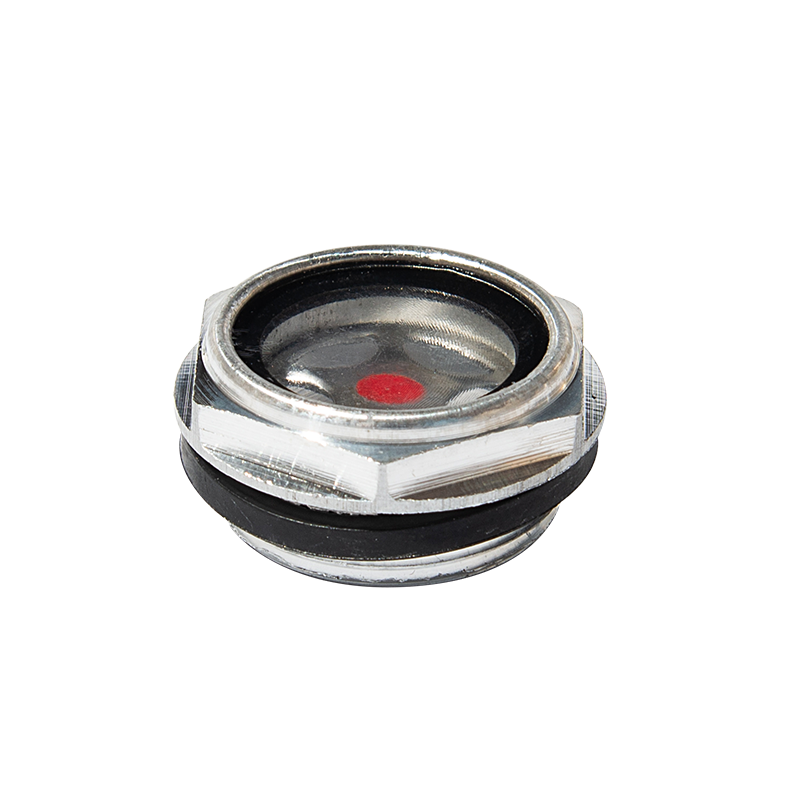

Aluminium oil sight glass universal(BSP thread)(inch screw thread) | |||||||
Sealing method (flat gasket seal) | |||||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | D(mm) | Glass(mm) |
ZYZZ-BG14 | 1/4” | G1/4 | 14 | 7 | 4.5 | 17 | 3 |
ZYZZ-BG38 | 3/8” | G3/8 | 16.5 | 9 | 5 | 21 | 3 |
ZYZZ-BG12 | 1/2” | G1/2 | 17.5 | 10 | 5 | 26 | 3 |
ZYZZ-BG34 | 3/4” | G3/4 | 18.5 | 10 | 6 | 32 | 4 |
ZYZZ-BG1 | 1” | G1 | 23.5 | 13 | 7 | 40 | 4 |
ZYZZ-BG114 | 1-1/4” | G1-1/4 | 24 | 13.5 | 7 | 50 | 5 |
ZYZZ-BG112 | 1-1/2” | G1-1/2 | 24 | 13.5 | 7 | 55 | 5 |
ZYZZ-BG2 | 2” | G2 | 26 | 14.5 | 8 | 70 | 6 |
Aluminium oil sight glass universal(BSP thread)(inch screw thread) | |||||||
Sealing method (O-ring seal) | |||||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | D(mm) | Glass(mm) |
ZYZZ-0BG14 | 1/4” | G1/4 | 14 | 7 | 4.5 | 17 | 3 |
ZYZZ-0BG38 | 3/8” | G3/8 | 16.5 | 9 | 5 | 21 | 3 |
ZYZZ-0BG1/2 | 1/2” | G1/2 | 17.5 | 10 | 5 | 26 | 3 |
ZYZZ-0BG3/4 | 3/4” | G3/4 | 18.5 | 10 | 6 | 32 | 4 |
ZYZZ-0BG1 | 1” | G1 | 23.5 | 13 | 7 | 40 | 4 |
ZYZZ-0BG114 | 1-1/4” | G1-1/4 | 24 | 13.5 | 7 | 50 | 5 |
ZYZZ-0BG112 | 1-1/2” | G1-1/2 | 24 | 13.5 | 7 | 55 | 5 |
ZYZZ-0BG2 | 2” | G2 | 26 | 14.5 | 8 | 70 | 6 |
Material: Aluminum Alloy 6061, surface polished. Burr removal.
Observe the mirror material: Polyurethane (PC-plastic). (Optional tempered glass, high borosilicate glass)
Seal ring type: nbr60 °, with black
Sealing ring at thread: NBR. (Customized optional fluorine glue, silicone, PC, EPDM)
Recommended operating temperature: -
Recommended working pressure: lower
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | D(mm) | ZZ(mm) | GLASS |
ZYZZ-YJOM14 | M14 | M14*1.5 | 16 | 7 | 3 | 17 | 20 | 2.5 |
ZYZZ-YJOM16 | M16 | M16*1.5 | 15 | 7 | 3 | 17 | 20 | 2.5 |
ZYZZ-YJOM20 | M20 | M20*1.5 | 15 | 8 | 3 | 24 | 26 | 3 |
ZYZZ-YJOM22 | M22 | M22*1.5 | 15 | 8 | 3 | 24 | 26 | 3 |
ZYZZ-YJOM24 | M24 | M24*1.5 | 16 | 9 | 3 | 29 | 32 | 4 |
ZYZZ-YJOM27 | M27 | M27*1.5 | 16 | 9 | 3 | 29 | 32 | 4 |
ZYZZ-YJOM42 | M42 | M42*1.5 | 16 | 9 | 3 | 29 | 51 | 4 |
ZYZZ-YJOG12 | 1/2” | G1/2 | 15 | 8 | 3 | 24 | 26 | 3 |
ZYZZ-YJOG34 | 3/4” | G3/4 | 15 | 9 | 3 | 24 | 32 | 4 |
Material: Aluminum Alloy 6061, surface polished. Burr removal.
Observe the mirror material: Polyurethane (PC-plastic). (Optional tempered glass, high borosilicate glass)
Seal ring type: nbr60 °, with black
Sealing ring at thread: NBR. (Customized optional fluorine glue, silicone, PC, EPDM)
Recommended operating temperature: -
Recommended working pressure: lower
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | D(mm) | ZZ(mm) | GLASS |
ZYZZ-YJM14 | M14 | M14*1.5 | 16 | 7 | 3 | 17 | 20 | 2.5 |
ZYZZ-YJM16 | M16 | M16*1.5 | 15 | 7 | 3 | 17 | 20 | 2.5 |
ZYZZ-YJM20 | M20 | M20*1.5 | 15 | 8 | 3 | 24 | 26 | 3 |
ZYZZ-YJM22 | M22 | M22*1.5 | 15 | 8 | 3 | 24 | 26 | 3 |
ZYZZ-YJM24 | M24 | M24*1.5 | 16 | 9 | 3 | 29 | 32 | 4 |
ZYZZ-YJM26 | M26 | M26*1.5 | 16 | 9 | 3 | 29 | 32 | 4 |
ZYZZ-YJM27 | M27 | M27*1.5 | 16 | 9 | 3 | 29 | 32 | 4 |
ZYZZ-YJM42 | M42 | M42*1.5 | 16 | 9 | 3 | 29 | 51 | 4 |
ZYZZ-YJG12 | 1/2” | G1/2 | 15 | 8 | 3 | 24 | 26 | 3 |
ZYZZ-YJG34 | 3/4” | G3/4 | 15 | 9 | 3 | 24 | 32 | 4 |
A breather valve is a device used to control the flow of gas within a tank, container, or system. Its primary function is to prevent overpressure and vacuum, reduce volatilization, and maintain pressu...
READ MOREThe primary function of an oil level sight glass (oil gauge) is to monitor and display the oil level in mechanical equipment or systems to ensure it is within the normal operating range. Through the t...
READ MOREIn modern industry and machinery manufacturing, hydraulic systems, due to their high efficiency, stability, and controllability, are widely used in a variety of industries, including construction mach...
READ MOREThe main function of the brass breather valve is to maintain the stability of the internal pressure of the tank or container and prevent damage to the equipment due to overpressure or vacuum. Specific...
READ MOREOil drip nozzle: A high-performance oil drip nozzle designed for precision lubrication systems. It ensures that mechanical parts are continuously and properly lubricated by precisely controlling the amount and frequency of grease dripping. Its design usually takes into account the viscosity, pressure and working environment temperature of the grease, and is widely used in lubrication systems in the fields of automobiles, industrial machinery, and aerospace.
Negative pressure valve: A valve device that precisely controls negative pressure. It maintains a stable negative pressure environment inside the system by precisely adjusting the opening and closing state of the valve. It is widely used in vacuum packaging, semiconductor manufacturing, medical equipment and other fields that require strict control of gas flow to ensure the safety and efficiency of the production process.
Metric glass flat gasket: A glass flat gasket that follows the international metric size standard, made of high-transparency, high-strength glass material, with excellent sealing and insulation properties. It is suitable for electronics, optical instruments, chemical equipment and other fields to ensure the cleanliness and transparency of the sealing surface while preventing medium leakage.
Metric hollow bracket: A hollow structure bracket designed according to metric standards, made of lightweight and high-strength materials, with good load-bearing capacity and stability. It is widely used in buildings, bridges, mechanical equipment and other fields as a key component of supporting and fixing the structure to ensure the stability and safety of the overall structure.
Aluminum vent cap: The vent cap is made of high-quality aluminum alloy material, which has excellent corrosion resistance and lightweight characteristics. It is designed with vent holes to allow air to circulate freely while preventing dust, moisture and other impurities from entering the equipment. It is suitable for ventilation protection of fuel tanks, water tanks and other components of vehicles such as automobiles, motorcycles, and engineering machinery.
Aluminum pre-compression vent cap: On the basis of the aluminum vent cap, a pre-compression design is added. Through the pre-set compression amount, it is ensured that the vent cap can fit the sealing surface tightly after installation, providing better sealing and ventilation effect. It is suitable for occasions with high requirements for sealing performance, such as high-pressure containers, gas tanks, etc.
Nylon vent cap: The vent cap is made of high-performance nylon material, which has excellent corrosion resistance, wear resistance and lightweight characteristics. It is suitable for ventilation protection in various harsh environments, such as chemical industry, food processing, marine engineering and other fields. At the same time, the nylon vent cap also has good insulation properties and can be used for ventilation protection of electrical equipment.
Plastic vent cap: The vent cap made of high-quality plastic material has the advantages of low cost, easy processing and installation. It is suitable for occasions where ventilation performance is not required, such as household appliances, toys, stationery and other products. Although the strength and durability of plastic vent caps are relatively low, they are sufficient to meet the needs in many daily applications.
Copper filter vent cap: An innovative product that combines a copper filter with a vent cap. Through the filtering effect of the copper filter, it effectively removes impurities and particulate matter in the air while allowing the gas to flow freely. It is suitable for occasions with high air quality requirements, such as laboratories, hospitals, precision instrument rooms, etc. Copper materials also have good thermal conductivity and corrosion resistance, ensuring the long-term and stable operation of the vent cap.
Imperial glass flat washers: Glass flat washers that follow the international imperial size standards are more in line with the standards of the United Kingdom and some Commonwealth countries than metric glass flat washers. It is also made of high-transparency, high-strength glass materials with excellent sealing and insulation properties. It is suitable for occasions that need to be in line with international standards, such as international trade, multinational cooperation projects, etc.
Organic glass O-ring: O-ring seals made of organic glass material have the characteristics of high transparency, strong corrosion resistance and good elasticity. It is suitable for occasions where the sealing state needs to be observed, such as optical instruments, medical equipment, chemical equipment, etc. At the same time, organic glass O-rings also have good sealing performance and temperature resistance, and can withstand high and low temperature environments within a certain range.
Organic glass flat gasket: Flat gasket seals made of organic glass material have the advantages of high transparency, strong corrosion resistance and light weight. It is suitable for occasions where the sealing surface state needs to be observed, such as optical instruments, precision machinery, etc. At the same time, organic glass flat gaskets also have good insulation and sealing properties, which can ensure the cleanliness and transparency of the sealing surface.
Round hexagonal glass: A glass product with round and hexagonal shapes, combining the geometric beauty of round and hexagonal shapes, can be used for decorative purposes, as well as as observation windows or special structural parts. Round hexagonal glass is usually made of high-transparency, high-strength glass materials, with excellent light transmittance and corrosion resistance. It is suitable for various occasions that require transparent observation or decorative effects, such as building curtain walls, artwork production, scientific experiments, etc.
